Technical Parameters
Item | Specification |

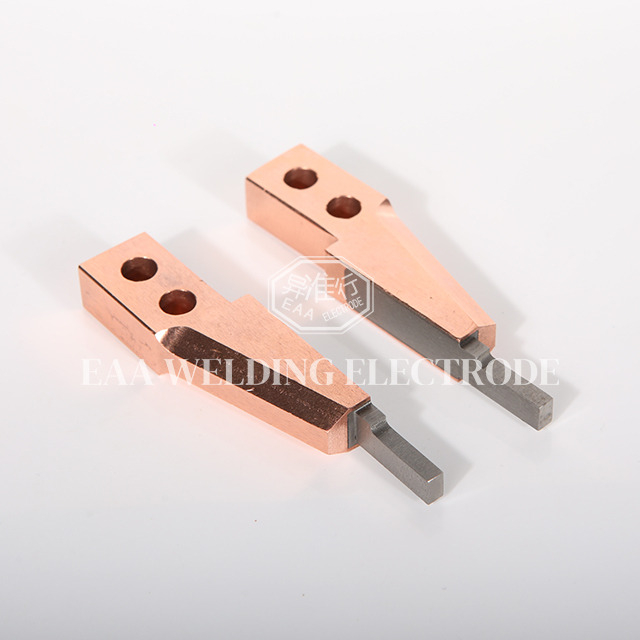

Material | Chromium Zirconium Copper + Pure Tungsten |
Configuration | Inlaid composite structure |
Dimensions | 45 × 12 × 4 mm (L × W × T) |
Tolerance | Per customer drawings or national standards |
Manufacturing Process | Mechanical machining and welding |
Joint Quality | High-strength metallurgical bond |
Welding Method | Parallel welding configuration |
Thermal Conductivity | Enhanced through material combination |
Customization | Available for dimensions, materials, and specifications |
All specifications can be modified based on specific welding requirements, including material grades, geometry, and surface treatments.
Product Features
Composite Material Design
Chromium zirconium copper provides excellent electrical conductivity and mechanical properties Pure tungsten insert delivers exceptional heat resistance and wear characteristics Material pairing optimizes both conductivity and durability performance
Advanced Welding Technology
Metallurgical bonding ensures reliable material interface Mature welding process guarantees consistent joint strength Clean bonding surface maintains electrical and thermal transfer efficiency
Precision Manufacturing
CNC machining delivers accurate dimensional control Strict tolerance management meets specification requirements Consistent quality across production batches ensures reliable performance
Balanced Performance
Chromium zirconium copper offers thermal management capabilities Tungsten insert handles high-temperature welding conditions Configuration balances cost efficiency with functional requirements
Custom Engineering
Dimensions adapt to specific welding equipment configurations Material selection matches application thermal and electrical demands Technical consultation available for process optimization
Applications
This inlaid electrode serves parallel welding processes across multiple industrial sectors:
Battery pack assembly and terminal connections Electronic component joining and circuit board manufacturing Automotive wire harness and connector production Appliance manufacturing and metal enclosure assembly High-volume automated welding lines requiring consistent results Applications demanding extended electrode life and reduced maintenance.
Parallel Welding Process
Parallel welding involves electrodes positioned on opposite sides of workpieces, with current flowing perpendicular to the joint interface. This method creates welds through resistance heating at the contact surfaces.
Process Characteristics:
Suitable for overlapping sheet materials and component assemblies Enables high-speed production with automated equipment Requires electrodes with balanced thermal and electrical properties Current distribution affects heat generation and weld formation.
Electrode Requirements:
Inlaid electrodes address parallel welding demands effectively. The chromium zirconium copper base provides conductivity while the tungsten insert manages thermal stress during repeated welding cycles, maintaining dimensional stability under continuous production conditions.
Customization Services
We recognize that welding processes vary across applications. As a specialized manufacturer of resistance welding electrodes, we provide:
Specification Modification
Custom electrode dimensions match your equipment and process parameters based on technical requirements.
Material Selection
Alternative material combinations available for different thermal loads and current densities in your application.
Surface Preparation
Finish options ensure proper contact characteristics and contamination resistance.
Engineering Assistance
Process parameter recommendations Material compatibility evaluation Installation guidance Ongoing technical consultation.
Production Flexibility
Scalable order quantities Streamlined manufacturing workflow Reliable delivery schedules.
Frequently Asked Questions (FAQ)
1. Why use an inlaid electrode instead of solid material electrodes?
Inlaid electrodes combine the conductivity advantages of copper alloys with tungsten's thermal resistance, achieving 3-8 times longer service life than single-material alternatives while maintaining electrical performance.
2. How many welding cycles can this electrode complete?
Electrode life typically ranges from 30,000-80,000 cycles based on welding current, material thickness, and maintenance practices.
3. Can electrode specifications be modified for our equipment?
Yes, all dimensions and material configurations are customizable according to your technical drawings and welding process needs.
4. What maintenance does the electrode require?
Regular surface cleaning, parameter monitoring within specified ranges, and proper cooling system operation extend electrode performance.
5. Which materials work with this electrode configuration?
The electrode handles carbon steel, stainless steel, copper alloys, galvanized materials, and other conductive metals in thicknesses from 0.3mm to 8mm+.
