Technical Parameters
Item | Specification |
Material | Chromium zirconium copper + Pure tungsten |

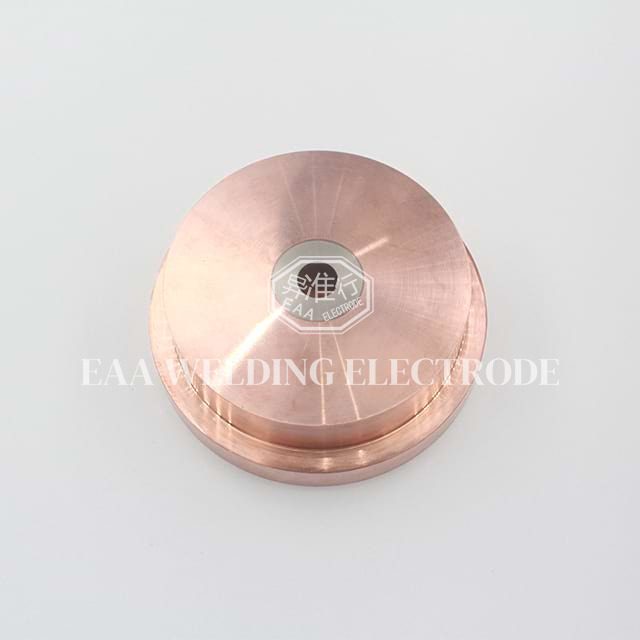

Shape | Disk type with tungsten insert |
Dimensions | D40 × 25 mm |
Tolerance | As per drawings or national standards |
Process | Machining + welding |
Surface | Machined finish |
Inlay Structure | Welded tungsten insert |
Application Method | Roller seam welding |
Heat Load | Stable under continuous current |
Customization | Size, insert depth, material option |
All specifications can be adjusted according to customer requirements.
Product Features
Pure Tungsten Inlay
Maintains steady contact during continuous welds
Hard surface resists deformation from long welding cycles
Supports uniform current density
Bonded Structure
Welded inlay prevents loosening under turning load
Stable joint improves thermal transfer across the head
Reduces surface changes caused by repeated heating
Accurate Disk Machining
CNC machining ensures roundness and thickness accuracy
Helps rollers maintain stable rotation in welding systems
Supports alignment in automated equipment
Controlled Heat Behavior
Tungsten insert focuses heat at the weld interface
Copper body conducts heat away to reduce overheating
Helps maintain stable molten formation during seam welding
Flexible Custom Options
Disk diameter, thickness, and edge form can be modified
Insert can be pure tungsten or tungsten-copper alloy
Suitable for different pressure loads and weld tracks
Applications
This electrode is used in continuous seam welding processes for:
Metal casings and protective enclosures
Electrical component housings
Light mechanical structures
Small appliances and metal cylinders
Steel and stainless steel sheet joining
Coated and plated metal welding
Roller Seam Welding Process
oller seam welding uses rotating electrodes to form a continuous weld line.
Process Benefits:
Forms sealed welds along long seams
Suitable for thin sheets and overlapping joints
Simple integration into automated lines
Electrode Requirements:
Tungsten-inlaid disks keep their surface shape under rotation and pressure, enabling stable weld traces and consistent nugget formation.
Customization Services
We offer complete customization support for different welding systems:
Dimension Options: Disk diameter, thickness, and center design
Insert Design: Tungsten grade, width, and depth customization
Surface Needs: Machined finish, edge radius, or specific contact surface
Technical Support
Welding parameter review
Electrode matching suggestions
Trial sample support
After-use feedback tracking
Fast Delivery
Standard machining flow
Flexible order management
Steady lead time for trial and mass production
Frequently Asked Questions (FAQ)
1. Why use a tungsten inlay for seam welding?
It holds shape under rotation and heat, providing stable contact during long runs.
2. How long does the disk electrode last?
Lifetime varies with current, pressure, and sheet material, but tungsten inserts last longer than copper-only disks.
3. Can the disk thickness be customized?
Yes. We adjust diameter, thickness, and insert design based on drawings.
4. What materials can it weld?
Suitable for carbon steel, stainless steel, coated steel, and common industrial sheet metals.
5. How should it be maintained?
Keep surfaces clean, monitor cooling, and avoid excessive pressure during operation.
