Technical Parameters
Specification | Details |

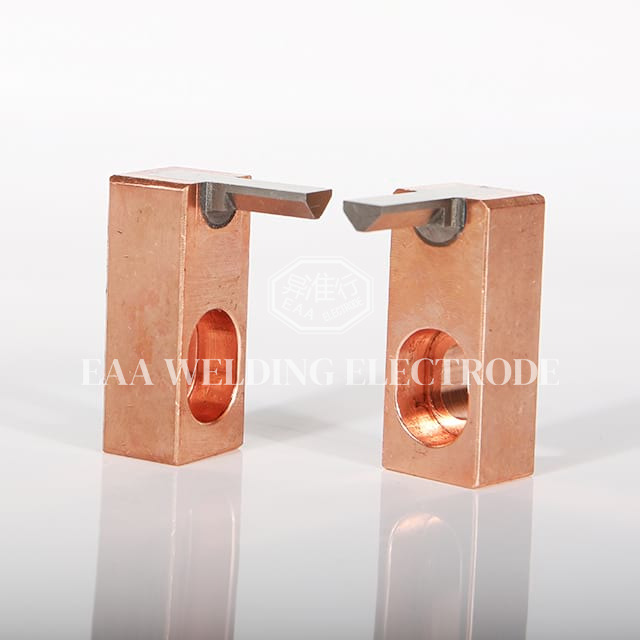

Product Name | L shaped Inlaided electrode |
Material | Chromium zirconium copper + pure tungsten |
Dimensions | 26×25×12mm |
Manufacturing Process | Mechanical processing + welding |
Dimensional Tolerance | Complies with custom drawings and national standard requirements |
Usage Method | Clamp welding |
Product Features
Ergonomic L-Shaped Design
Enables access to angular joints and tight spaces, expanding welding versatility.
Dual-Material Advantage
Chromium zirconium copper ensures efficient current transfer; pure tungsten resists high temperatures.
Rigid Structural Integrity
The L-shape provides stable clamping support, reducing welding vibration.
Precision Angle Control
Tight dimensional tolerance guarantees consistent angle alignment across applications.
Wear-Resistant Surface
The inlaid pure tungsten tip minimizes wear, extending electrode service life.
Applications
The L shaped Inlaided electrode excels in industries requiring angular or clamp welding precision:
Aerospace manufacturing: Welding of aircraft frame brackets, engine mounts, and avionic components.
Medical device production: Joining of angular surgical tools, implantable devices, and equipment frames.
Industrial machinery fabrication: Assembly of gear housings, hydraulic fittings, and structural brackets.
Furniture manufacturing: Welding of metal furniture frames, hinges, and decorative angular components.
Automotive aftermarket: Custom welding of modified vehicle parts and structural reinforcements.
Projection Welding Process
Setup and Preparation
Secure the L-shaped electrode in the welding clamp, ensuring the angular tip aligns with the target joint.
Clean the workpiece’s welding area and the electrode’s contact surface to remove contaminants.
Adjust the clamp pressure to fit the workpiece’s thickness and shape, avoiding excessive force.
Welding Operation
Set the welding current and duration based on the workpiece material (steel, copper, alloy, etc.).
Activate the clamp welding process, allowing the electrode to deliver focused current to the joint.
Maintain stable clamping throughout the cycle to ensure consistent weld quality.
Post-Welding Steps
Release the clamp and inspect the weld joint for strength and uniformity.
Cool the electrode and workpiece to room temperature before handling.
Clean the electrode’s tip with a soft brush to remove welding residue.
Customization Services
We offer tailored solutions for the L shaped Inlaided electrode to meet specific application needs:
Angle customization
Adjust the L-shape angle (90° standard) for non-standard joint requirements.
Dimension modification
Resize length, width, or thickness (26×25×12mm) to fit custom fixtures.
Material optimization
Adjust the chromium zirconium copper-pure tungsten ratio for specialized environments.
Tolerance refinement
Achieve ultra-precise dimensional control for high-end applications.
Surface treatment
Add anti-oxidation coatings to extend service life in harsh conditions.
Frequently Asked Questions (FAQ)
1. Can this electrode weld thick workpieces?
It is ideal for medium-thickness workpieces (2-8mm); for thicker materials, we recommend our customized heavy-duty version.
2. Does the L-shape affect welding current distribution?
No, the design is engineered to ensure uniform current flow, delivering consistent weld quality.
3. What is the maximum operating temperature the electrode can withstand?
The pure tungsten component allows it to tolerate temperatures up to 3410°C, suitable for most industrial welding tasks.
4. Is it compatible with manual welding equipment?
Yes, it works with both manual and automated welding systems, offering flexibility in production setups.
5. How to request a custom-sized L-shaped electrode?
Provide your technical specifications (angle, dimensions, tolerance) via our customization form, and we’ll provide a tailored quote.
