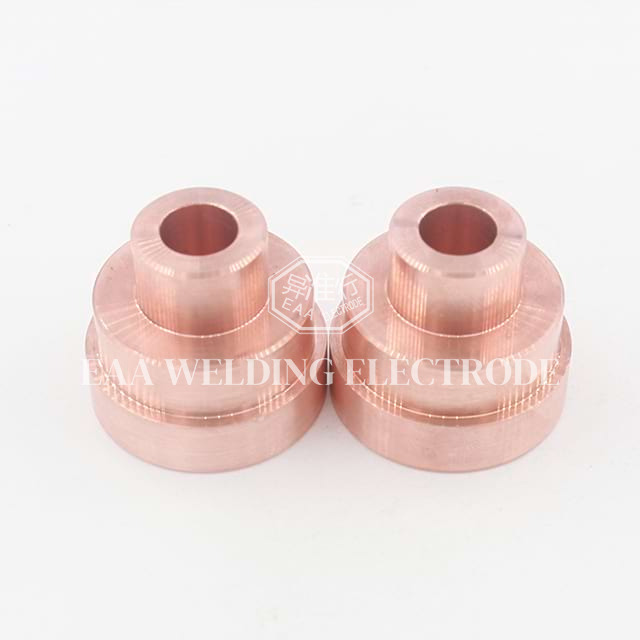

The Chromium Zirconium Copper Stepped Cylindrical Electrode is designed for roller seam welding applications where the electrode must rotate smoothly, guide the workpiece accurately, and maintain stable electrical contact along a continuous weld path. Its stepped cylindrical profile helps match the welding wheel, fixture groove, or workpiece edge position, making it suitable for seam welding processes that require controlled tracking and consistent pressure.
Made from chromium zirconium copper, the electrode combines good conductivity with improved strength compared with ordinary copper. It is suitable for continuous welding of sheet metal parts, cylindrical containers, pipe sections, appliance housings, and other components that require a uniform seam rather than separate weld spots.
Technical Parameters
Parameter | Specification |
Material | Chromium zirconium copper (CrZrCu) |
Dimensions | D30×45mm (customizable per requirements) |
Manufacturing Process | High-precision mechanical processing |
Dimensional Tolerance | Meets custom drawings and national standard requirements |
Usage Method | Roller seam welding |
Product Features
Stepped cylindrical design
The stepped cylindrical shape is used to improve positioning during rolling contact. Compared with a simple straight cylinder, the stepped profile can help define the working width, guide the contact area, and reduce lateral shifting during seam welding.
This structure is useful when the weld path must follow a narrow edge, overlap line, tube seam, or formed sheet metal profile. The step can also be customized to match the machine holder or the required rolling track.
High-quality chromium zirconium copper material
Chromium zirconium copper is selected for applications that need both current conduction and mechanical stability. During roller seam welding, the electrode remains in repeated rotating contact with the workpiece, so the material must resist surface wear while carrying welding current continuously.
The CrZrCu material helps maintain a stable electrical path and reduces the risk of rapid softening in long-cycle welding operations.
Precision manufacturing
The electrode is machined to control roundness, step height, working width, and installation dimensions. These details are important because uneven cylindrical geometry may cause vibration, poor tracking, or inconsistent pressure during rolling.
Precision processing helps the electrode rotate more smoothly and keeps the seam welding line more stable across repeated production runs.
Compliance with standards
Dimensions and tolerances can be manufactured according to customer drawings and applicable national standards. This is especially important for replacement parts used on existing roller seam welding machines, where shaft fit, step position, and outer diameter must match the original fixture.
For batch orders, consistent dimensional control helps maintain interchangeability and reduces adjustment time during electrode replacement.
Wear-resistant performance
The electrode is suitable for repeated rolling contact under welding pressure. Its chromium zirconium copper structure provides better resistance to surface wear and compression than ordinary copper in many seam welding applications.
Proper cooling, correct pressure setting, and regular surface cleaning can help maintain the electrode profile and extend its usable life.
Stable transmission
In seam welding, current must be transmitted continuously as the electrode rolls along the workpiece. This stepped cylindrical electrode supports a stable contact path and helps reduce current fluctuation caused by poor seating or unstable rolling pressure.
A stable current path helps improve weld seam continuity, reduce local overheating, and support a cleaner seam appearance.
Applications
The Chromium Zirconium Copper Stepped Cylindrical Electrode is mainly used in roller seam welding systems that require continuous weld formation and accurate rolling guidance. Typical applications include:
Longitudinal seam welding of thin sheet metal parts
Welding of cylindrical containers, tanks, and metal sleeves
Edge seam welding of formed sheet components
Automotive fuel tank, exhaust pipe, and sheet metal seam production
Appliance housings, drums, and metal shell welding
Tinplate container, metal packaging, and small barrel welding
Stainless steel, carbon steel, galvanized sheet, and suitable alloy sheet seam welding
Custom roller welding fixtures requiring stepped contact geometry
This electrode is more suitable for continuous seam welding than ordinary spot welding because its cylindrical form is designed to rotate with the workpiece and maintain a consistent welding line.
Projection Welding Process (Roller Seam Welding)
Equipment setup
Install the stepped cylindrical electrode onto the roller seam welding machine and confirm that the shaft fit, step direction, and working face position are correct. The electrode spacing should be adjusted according to the workpiece thickness, overlap width, and required seam position.
Before production, check whether the electrode rotates smoothly and whether the step aligns with the intended weld path.
Workpiece feeding
Feed the workpiece between the upper and lower roller electrodes. The workpiece should enter the welding area in a stable direction without twisting, lifting, or side movement.
For sheet metal overlap seams or tube seams, proper guiding is important. The stepped profile can help keep the welding line aligned with the designed contact position.
Welding initiation
After the workpiece is clamped by the roller electrodes, welding current is applied while the electrodes rotate. Heat is generated along the seam line as the workpiece moves through the contact area.
The electrode’s cylindrical structure allows current and pressure to follow the weld path continuously, forming a seam instead of isolated weld points.
Heat dissipation
Chromium zirconium copper helps conduct heat away from the working surface during continuous operation. This supports more stable electrode temperature and reduces the chance of heat buildup at the contact zone.
For long welding cycles, cooling conditions and welding speed should be matched properly to prevent excessive electrode temperature or workpiece distortion.
Finishing
After the seam is completed, the weld line should be checked for continuity, surface uniformity, leakage risk if applicable, and workpiece deformation. If the seam shows intermittent welding, burn marks, or uneven pressure traces, the electrode profile and machine alignment should be inspected.
Regular inspection of the step surface is recommended because profile wear may affect seam position and pressure distribution.
Customization Services
EAA can manufacture stepped cylindrical chromium zirconium copper electrodes according to drawings, samples, equipment models, or specific seam welding requirements. Custom production is suitable for replacement electrodes, new fixture development, and non-standard roller welding machines.
Dimensional customization
Outer diameter, total length, step diameter, step width, shaft hole, groove, chamfer, and installation shoulder can be customized. The electrode can also be designed to match different roller widths and workpiece guiding structures.
For seam welding applications, the relationship between the step position and the weld line should be confirmed before machining.
Material refinement
Chromium zirconium copper is commonly used when the electrode needs reliable conductivity and better resistance to mechanical wear. For special welding loads, material choice can be reviewed based on current, rolling pressure, welding speed, and cooling method.
If the application involves high-frequency continuous production, the electrode structure and cooling conditions should be considered together.
Tolerance customization
Key dimensions such as outer diameter, concentricity, step height, shaft fit, and working face width can be controlled according to drawing requirements. Tight tolerance is recommended when the electrode directly affects seam tracking or machine rotation stability.
Consistent tolerance is also important for customers who need repeat orders or replacement parts for multiple machines.
Surface treatment
The working surface can be machined, polished, or finished according to the workpiece material and seam quality requirement. A smoother surface may help reduce marking, while a controlled surface profile may be needed for stable traction during rolling contact.
Surface finish should be selected according to welding pressure, material coating, and required seam appearance.
Technical support
EAA can assist with electrode structure review, step profile confirmation, material selection, and seam welding process matching. Customers can provide machine model, workpiece drawing, seam location, material thickness, welding speed, and current range for better evaluation.
Sourcing critical welding components requires a partner who understands the high stakes of continuous manufacturing. As a dedicated manufacturer and trusted industrial supplier, we provide much more than just physical parts; we deliver process reliability and peace of mind.
Every Chromium Zirconium Copper Stepped Cylindrical Electrode undergoes rigorous metallurgical testing and dimensional inspection before leaving our facility. We guarantee that what you install on your machinery matches your exact specifications down to the micron, ensuring zero disruptions to your workflow.
Scalable Production: Whether your procurement requires a small batch for prototyping or massive volumes for global assembly lines, our manufacturing capacity scales to meet your demands seamlessly.
Technical Synergy: Our engineering team works directly with your production managers to provide expert advice on electrode selection, parameter optimization, and lifecycle management.
Rapid Fulfillment: We understand that a halted production line bleeds capital. Our streamlined logistics ensure that your critical components arrive exactly when needed, keeping your operations flowing smoothly.
We continuously refine our machining processes and alloy treatments. By partnering with us, you ensure that your facility always has access to the most advanced, durable, and energy-efficient welding solutions available on the global market.
Frequently Asked Questions (FAQ)
1. What makes the stepped cylindrical design superior for roller seam welding?
The stepped structure ensures uniform pressure distribution across the weld seam, reduces electrode contact resistance, and facilitates smooth rolling, avoiding skidding or uneven welding compared to traditional cylindrical electrodes.
2. Can this electrode be used with different workpiece thicknesses?
Yes, the Chromium zirconium copper stepped cylindrical electrode can be customized in dimensions and step design to adapt to workpiece thicknesses ranging from 0.5mm to 10mm, meeting diverse production needs.
3. How does the chromium zirconium copper material enhance welding efficiency?
Chromium zirconium copper’s high electrical conductivity reduces energy consumption, while its excellent thermal conductivity prevents heat buildup, allowing for continuous welding without frequent electrode cooling or replacement.
4. What standards does the electrode comply with?
It strictly complies with national welding component standards and can be customized to meet international standards such as DIN and JIS, ensuring compatibility with global welding equipment.
