Technical Parameters
Specification | Details |

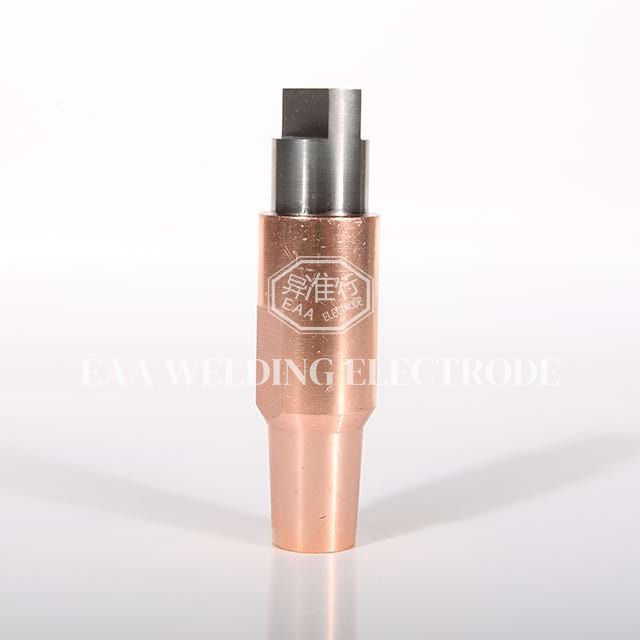

Product Name | Medium sized tungsten copper inlaid electrode with taper |
Material | Chromium zirconium copper + pure tungsten |
Dimensions | 75×13×8mm |
Manufacturing Process | Mechanical processing + welding |
Dimensional Tolerance | Complies with custom drawings and national standard requirements |
Usage Method | Lap welding (upper and lower welding) |
Product Features
Precision Taper Design
Enhances workpiece alignment and pressure distribution, improving weld uniformity.
Medium-Sized Versatility
75×13×8mm dimensions fit a wide range of lap welding applications, from small to medium workpieces.
Premium Material Blend
Chromium zirconium copper ensures fast heat transfer; pure tungsten resists wear and deformation.
High-Dimensional Accuracy
Tight tolerance control meets custom and national standard requirements.
Robust Construction
The inlaid structure and taper design enhance structural stability during prolonged use.
Applications
The Medium sized tungsten copper inlaid electrode with taper is widely applied in diverse industrial sectors:
Home appliance manufacturing: Welding of refrigeration components, washing machine drums, and oven parts.
Electrical engineering: Joining of power distribution equipment, motor windings, and transformer cores.
Automotive production: Assembly of car body panels, exhaust systems, and interior metal components.
Industrial equipment fabrication: Welding of conveyor systems, pump housings, and machine tool parts.
Renewable energy: Production of solar panel frames, wind turbine components, and battery modules.
Projection Welding Process
Pre-Welding Setup
Inspect the electrode’s taper for wear or damage; replace if the taper accuracy is compromised.
Clean the workpiece’s overlapping surfaces and the electrode’s taper tip to ensure good contact.
Mount the electrode in the upper and lower welding fixtures, aligning the taper with the target joint.
Welding Execution
Set the welding parameters (current, voltage, pressure) based on the workpiece material and overlap thickness.
Start the lap welding cycle, allowing the taper to guide precise alignment and even pressure application.
Monitor the process to ensure consistent heat input, avoiding under-welding or overheating.
Post-Welding Maintenance
Allow the workpiece and electrode to cool before inspection.
Check the weld joint for strength, uniformity, and absence of defects.
Clean the electrode’s taper tip with a specialized tool to remove residue and preserve precision.
Customization Services
To address unique application requirements, we offer comprehensive customization for the Medium sized tungsten copper inlaid electrode with taper:
Taper angle adjustment
Modify the taper’s angle to match specific workpiece geometries.
Dimensional customization
Resize length (75mm), width (13mm), or thickness (8mm) for custom fixtures.
Material ratio optimization
Adjust the chromium zirconium copper-pure tungsten blend for specialized welding tasks.
Tolerance enhancement
Achieve tighter dimensional control for high-precision applications.
Branding and packaging
Add custom logos or batch coding for inventory management.
Frequently Asked Questions (FAQ)
1. What advantages does the taper design offer?
The taper improves workpiece alignment, distributes pressure evenly, and reduces the risk of weld misalignment.
2. Can this electrode be used for continuous production?
Yes, its robust construction and wear-resistant material make it suitable for high-volume continuous welding.
3. What workpiece materials are compatible with this electrode?
It works effectively with carbon steel, stainless steel, copper, aluminum, and various metal alloys.
