| Item | Specification |
| Material | Chromium Zirconium Copper + Pure Tungsten |
| Structure | Water-cooled inlaid electrode |
| Dimensions | 50 × 15 × 15 mm (L × W × H) |
| Tolerance | Per customer drawings or national standards |
| Manufacturing Process | Mechanical machining and welding |
| Cooling Feature | Water cooling compatible design |
| Joint Type | Metallurgical bonded interface |
| Application Method | Clamp welding |
| Thermal Management | Enhanced through cooling channels |
| Customization | Available for dimensions, cooling paths, and materials |
All specifications adapt to specific application requirements, including cooling system integration, material selection, and dimensional modifications. Beyond these foundational metrics, our engineering team ensures that the chemical composition and material purity of every unit meet exacting tolerances. By strictly defining the precise ratio of the high-purity tungsten insert to the chromium zirconium copper base, we guarantee optimal electrical conductivity alongside exceptional resistance to thermal fatigue. This meticulous approach to metallurgy translates directly into stable performance during extended, high-current operations. Operators can maintain consistent output without unexpected downtime, confident that the electrode's structural integrity will hold up under intense manufacturing demands.

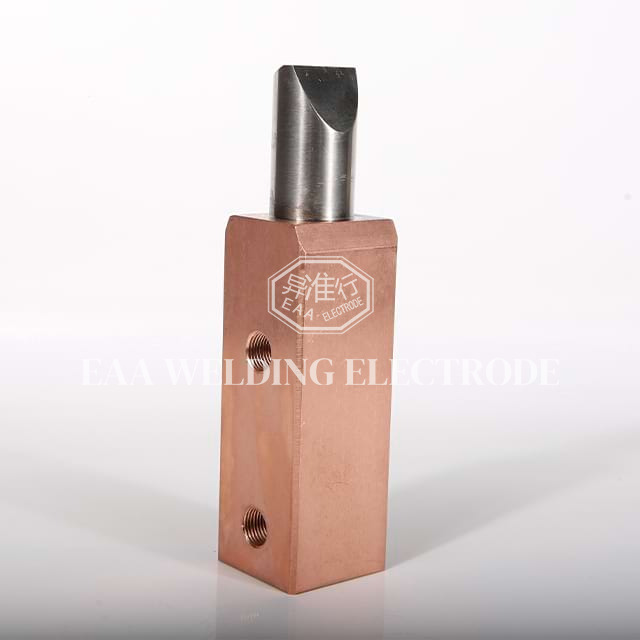

Larger dimensions enable internal or external cooling channel integration. The smooth, precision-machined exterior houses an advanced internal cooling network. When active, the continuous flow of coolant effectively neutralizes the intense heat generated at the contact point, leaving the electrode surprisingly cool to the touch even after hundreds of cycles. This proactive temperature control prevents electrode degradation and protects the workpiece from heat-induced warping or discoloration.
Chromium zirconium copper delivers exceptional electrical conductivity and thermal transfer, while the pure tungsten insert withstands extreme contact zone temperatures and mechanical stress. The transition between these two metals features a 100% metallurgical bonded interface, verified through rigorous ultrasonic non-destructive testing (NDT). This flawless welded joint maintains absolute integrity under severe thermal cycling and massive current flow, eliminating the risk of internal micro-cracking.
The substantial dimensions provide necessary structural strength for high-force applications. Engineered to withstand immense mechanical pressure, the electrode boasts outstanding tensile and yield strength data, ensuring safety and stability during continuous high-load operations. The calculated mass distribution actively supports heat dissipation requirements, while the generous size comfortably accommodates complex mounting systems and secure cooling connections without compromising the tool's physical integrity.
Every unit is crafted utilizing advanced CNC machinery, maintaining tight dimensional tolerances that ensure a perfect fit into your existing welding apparatus. Our process control ensures consistent electrode geometry across every batch. Furthermore, our manufacturing protocols adhere strictly to AWS and ISO international welding standards, guaranteeing that the quality meets exact technical drawing specifications and delivers repeatable results on the factory floor.
Water cooling extends electrode operational life significantly by actively managing the thermal load. Rapid heat removal maintains consistent welding parameters, preventing the frustrating fluctuations in weld quality that often plague air-cooled alternatives. This drastically reduced thermal stress minimizes dimensional changes during use, meaning the electrode retains its precise shape and contact area from the first weld of the shift to the last.
This water-cooled inlaid electrode serves high-demand clamp welding processes across industrial sectors. It is engineered to provide a highly compatible welding matrix, effortlessly joining carbon steel, stainless steel, aluminum, copper alloys, and galvanized sheets ranging in thickness from 0.8mm to over 12mm. By matching the exact material requirements of your production line, it facilitates:
Heavy automotive component and chassis assembly welding, where structural integrity is non-negotiable.
Industrial machinery and equipment fabrication requiring deep penetration and consistent joint strength.
Thick material joining in structural applications, easily handling materials exceeding 12mm.
High-current welding operations requiring continuous duty cycles without thermal interruption.
Battery module assembly and busbar connections, demanding pristine electrical conductivity.
Production environments with extended welding sequences where downtime for electrode replacement must be minimized.
Clamp welding applies current through electrodes that grip workpieces, generating heat at material interfaces. This method creates joints without requiring opposite-side access, making it highly suitable for complex assemblies where accessibility is physically limited. The satisfying, solid clamping action ensures optimal surface contact before the current is initiated, forming a secure electrical pathway.
High-current applications generate substantial heat at electrode contacts, necessitating rapid thermal evacuation.
Continuous production demands proactive thermal management to prevent catastrophic electrode failure or melting.
Force application requires electrodes with immense structural integrity to prevent deformation under clamping pressure.
Heat accumulation directly affects both the total operational life of the electrode and the metallurgical quality of the final weld.
Water-cooled inlaid electrodes address these stringent requirements through integrated cooling channels and a sophisticated composite construction. The chromium zirconium copper base conducts electricity efficiently and transfers excess heat directly into the liquid cooling systems. Meanwhile, the dense tungsten insert handles the extreme contact zone temperatures. This synergistic design maintains the electrode's precise geometry and electrical performance through extended, punishing production runs.
We understand that industrial welding applications have specific, uncompromising electrode requirements. As a specialized resistance welding electrode manufacturer, we provide tailored solutions that integrate directly into your existing workflow:
Custom cooling channel configurations are engineered to match your specific equipment specifications and thermal requirements, ensuring optimal fluid dynamics and heat extraction.
Electrode sizes, threading, and mounting features adapt perfectly to your equipment geometry and workpiece requirements, strictly based on your provided technical drawings.
Alternative base materials and custom insert compositions are readily available to accommodate different current densities, mechanical pressures, and thermal conditions.
We offer comprehensive process parameter development support, guiding your team to achieve optimal electrode performance. Our engineering staff provides hands-on equipment integration assistance and ongoing application support to resolve complex welding challenges as they arise.
Our facilities offer production volume scalability, whether you require a small specialized batch or continuous high-volume supply. Every order is backed by stringent quality documentation and testing, including full Heat Number traceability and compliance with RoHS and SGS material certifications. We also ensure precise delivery schedule coordination to keep your assembly lines moving.
Water cooling removes heat 20-30 times more effectively than air cooling, enabling continuous operation at significantly higher currents. This active thermal management prevents the copper base from softening, which extends electrode life 6-12 times compared to non-cooled alternatives in demanding, high-duty-cycle applications.
With proper cooling implementation, electrode life typically exceeds 80,000 to 150,000 cycles. The exact lifespan depends on your specific current levels, the materials being joined, and adherence to recommended maintenance practices such as regular tip dressing.
Yes, cooling path configurations, connection types (such as specific thread standards), and internal flow requirements are fully customizable to match your existing cooling system specifications flawlessly.
Flow requirements vary by application intensity but typically range from 2 to 6 liters per minute. We provide specific, data-backed recommendations based on your unique welding parameters to ensure optimal heat extraction.
The electrode is highly versatile, handling carbon steel, stainless steel, copper alloys, aluminum, galvanized materials, and mixed material combinations. It effectively penetrates and joins materials in thicknesses ranging from delicate 0.8mm sheets to heavy structural components exceeding 12mm.
To guarantee that these precision-engineered water-cooled electrodes arrive at your facility in impeccable condition, we implement strict industrial-grade packaging protocols. Each electrode is individually treated with a specialized anti-rust compound and sealed in a moisture-barrier wrap to prevent oxidation during transit. For bulk orders, the units are securely nested within custom-molded, anti-collision foam inserts inside reinforced corrugated cartons. We provide comprehensive packing lists detailing the exact quantity per box, gross weight, and volumetric dimensions, ensuring seamless intake and inventory management at your receiving dock. This meticulous attention to logistics ensures that the critical metallurgical interfaces and machined cooling channels remain completely undamaged, regardless of the shipping distance.
