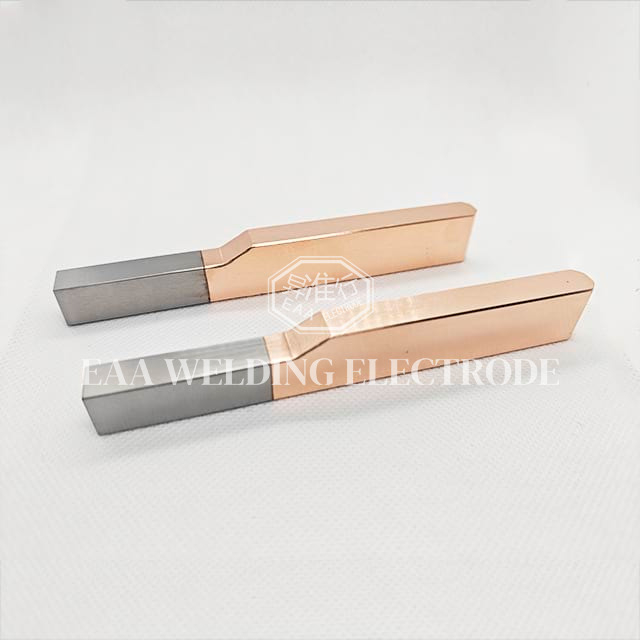

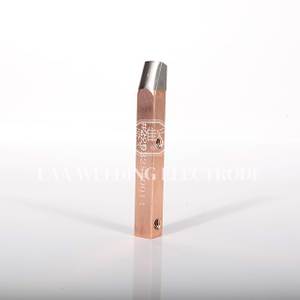

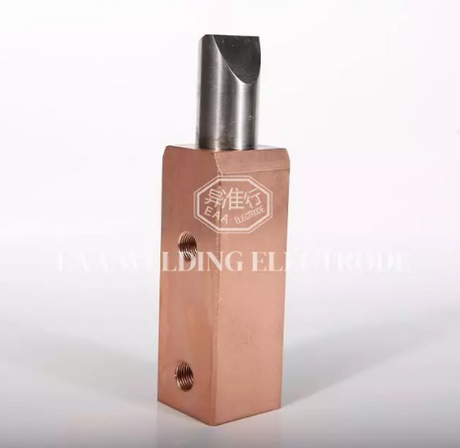

The Head Extension with Tungsten Copper Inlaid Electrode is an engineered solution designed specifically for demanding resistance welding applications that require exceptional wear resistance, stable current transfer, and unyielding performance under repeated high-temperature cycles. Holding this electrode, you immediately notice the substantial, dense feel of the precision-machined copper alloy body, which transitions flawlessly into the darker, robust working area of the tungsten copper inlay. This specialized construction provides both superior electrical conductivity through the shank and enhanced mechanical durability exactly at the welding contact point, solving the common problem of rapid tip degradation.
The thoughtfully designed extended head structure allows operators to bypass physical barriers, improving access to confined or recessed welding positions that standard tips simply cannot reach. Meanwhile, the integrated tungsten copper insert fortifies the working surface against the severe thermal and mechanical shocks inherent in demanding welding operations. It is an ideal component for automotive chassis components, electrical terminal connections, complex metal assemblies, and customized welding fixtures where maintaining stable electrode performance and extending the service life of manufacturing consumables is critical for production efficiency.
Item | Specification |
Material | Chromium zirconium copper + Pure tungsten |
Structure | Head extension with integrated tungsten-copper insert |
Dimensions | 129 × 18 × 10 mm |
Tolerance | As per drawings or national standards |
Process | Machining and welding |
Surface | Machined finish |
Application Method | Lap welding |
Heat Load Performance | Stable under continuous current |
Custom Options | Material grade, radius, size, inlay type |
The core advantage of this electrode lies in its exceptional material and metallurgical quality. By utilizing a high-purity chromium zirconium copper base seamlessly integrated with a premium tungsten copper contact area, it dramatically improves wear resistance and thermal stability at the critical welding point. Tungsten copper combines the extreme high-temperature resistance and hardness of tungsten with the excellent electrical and thermal conductivity of copper, making it perfectly suited for demanding resistance welding applications.
This specialized inlaid structure helps prevent the rapid mushrooming and pitting typically seen on standard contact surfaces. By maintaining its geometric integrity, the electrode ensures stable welding quality, minimizes the need for frequent tip dressing, and significantly extends the overall service life during intense, repeated production cycles.
The precisely engineered extended head structure allows the electrode to effortlessly reach welding positions that are obstructed or difficult to access with standard, shorter electrode shapes. It is especially useful for workpieces characterized by limited clearance, deep recessed welding points, intricate fixture layouts, or complex component geometry where standard tooling would cause interference.
This thoughtful design helps improve welding accessibility and operator visibility while maintaining rigid, stable electrode contact and highly accurate positioning during operation, ensuring that every weld is placed exactly where intended without compromising applied pressure.
The robust copper alloy body provides highly stable current transmission and incorporates an advanced cooling and thermal management design. Efficient heat dissipation during the welding process is crucial; the optimized extended head and conductive base work together to rapidly draw heat away from the contact point, effectively lowering the risk of thermal fade and structural deformation during continuous operations.
By combining a highly conductive copper alloy base with a wear-resistant tungsten copper insert, the electrode achieves an ideal balance between electrical welding efficiency, mechanical durability, and long-term process stability, ensuring consistent nugget formation weld after weld.
Each electrode is manufactured through rigorous precision CNC machining to ensure accurate dimensions, stable assembly, and clean, burr-free structural details. The gleaming machined finish reflects the exact tolerances maintained during production. Precise processing helps the electrode fit welding heads, holders, and fixtures flawlessly, reducing installation deviation and improving overall production reliability.
Furthermore, we utilize advanced non-destructive bonding and precision welding techniques for the inlay. This ensures that the tungsten copper insert remains firmly secured, resisting detachment or micro-cracking even under high-frequency, high-pressure continuous operations. Custom machining is readily available for special head extensions, stepped profiles, grooves, holes, angled surfaces, and non-standard mounting structures.
The dense tungsten copper insert drastically improves the electrode’s resistance to thermal impact, mechanical deformation, and surface wear. This is especially important in heavy-duty welding applications where the contact area is continuously exposed to repeated extreme pressure, intense current spikes, and localized heat.
A more durable, deformation-resistant contact surface helps reduce maintenance frequency on the production line, improves the consistency of the weld strength, and lowers replacement costs. Operators will notice fewer instances of sticking and a cleaner release from the workpiece in continuous production environments.
The Head Extension with Tungsten Copper Inlaid Electrode offers exceptional equipment compatibility, precisely matching various mainstream resistance welding machines, automated spot-welding robots, and customized welding fixtures designed for space-constrained environments. It is suitable for a wide range of industrial applications, including:
Automotive parts welding, including chassis components and reinforced brackets
Electrical terminals, busbars, and heavy-duty connectors
Precision hardware components requiring exact heat control
Sheet metal assemblies in appliance and HVAC manufacturing
Projection welding applications involving nuts, studs, and heavy fasteners
Spot welding in limited-access positions where standard shanks cause interference
Welding fixtures requiring extended electrode reach to clear clamps and guides
High-frequency production environments utilizing robotic arms
Components requiring highly wear-resistant electrode contact surfaces to prevent sticking
It is particularly suitable for applications where standard copper electrodes wear out too quickly, deform under pressure, or simply cannot reach the required welding position effectively without compromising the integrity of the setup.
During the lap resistance welding process, intense electrical current passes through the electrode and the overlapping workpieces to generate localized, controlled heat exactly at the welding point. To achieve a successful bond, the electrode must provide stable conductivity, precise mechanical pressure, and reliable heat control to form a consistent, structurally sound weld nugget without expelling molten metal.
The tungsten copper inlaid contact area plays a pivotal role here; it helps maintain the flat or radiused shape and stability of the working surface under repeated thermal and pressure cycles. The extended head design improves access to the target welding area, bypassing flanges or lips, while the copper alloy body supports efficient current delivery and rapid heat transfer away from the weld zone.
Significantly improved wear resistance at the contact point, reducing tip dressing intervals
Better heat resistance during repeated, high-speed welding cycles
Stable, unimpeded current transmission through the dense electrode body
Extended physical reach for special welding positions and deep channels
Reduced contact surface deformation (mushrooming) under high clamping force
Longer overall electrode service life compared with standard copper contact surfaces
Perfectly suitable for integration into custom welding fixtures and automated welding equipment
EAA provides fully customized tungsten copper inlaid electrodes tailored exactly to customer drawings, physical samples, specific welding machine models, complex fixture designs, and unique production requirements. We act as an extension of your engineering team.
The head length, overall body shape, insert position, contact face structure, and mounting design can be customized to match specific welding equipment and complex workpiece geometry. Whether you need a subtle offset or a drastic extension, we can machine the profile to suit your exact clearance needs.
The tungsten copper inlay can be customized in different sizes, shapes, and positions according to the specific demands of the welding contact area. Options include flat inserts for general lap welding, round inserts, rectangular inserts, stepped inserts for locating purposes, and special-shaped inlaid structures for contoured parts.
Electrodes can be produced with strict dimensional control according to customer drawings. Key dimensions such as length, width, thickness, insert depth, contact face size, and mounting position can be machined to meet stringent application requirements, ensuring drop-in replacement compatibility.
Different copper alloy bodies and specific tungsten copper grades can be selected according to your operating parameters, including welding current, applied pressure, workpiece material (such as bare steel vs. galvanized), heat load, and expected service life targets.
Our engineering team can provide comprehensive support for electrode structure optimization, insert design, material selection, and welding application matching based on your actual shop-floor production conditions and historical wear data.
Each electrode is manufactured with uncompromising attention to material quality, insert bonding accuracy, machining precision, and surface finish. To ensure industrial-grade consistency and a zero-defect rate for large procurement orders, our parts undergo rigorous inspection, including ultrasonic flaw detection to verify the bond, electrical conductivity testing, and CMM precision dimensional verification. The inlaid area is meticulously processed to ensure stable contact performance and reliable use.
Quality inspection can be carried out according to specific customer drawings, strict tolerance requirements, and applicable international production standards.
EAA supports rapid sample production, small-batch customization for prototyping, and long-term batch supply for tungsten copper inlaid electrodes and other resistance welding electrode components. To guarantee that parts arrive in pristine condition, we utilize industrial-grade anti-rust and anti-oxidation vacuum packaging. This ensures that whether the parts endure long-distance global transit or extended warehouse storage, they remain in a ready-to-use state straight out of the box.
We proudly serve procurement teams and engineers in automotive manufacturing, electrical components, hardware processing, sheet metal welding, precision parts production, and automated welding equipment industries worldwide.
Securing a reliable supply chain for critical manufacturing consumables is vital for maintaining your production schedules and minimizing costly downtime. As a dedicated manufacturer, we provide more than just hardware; we deliver comprehensive engineering partnerships designed to optimize your entire welding process from the ground up.
Full-Lifecycle Technical Support: Our engineers do not just sell parts. We provide in-depth welding evaluations, precise electrode matching recommendations, and actionable process improvement strategies to maximize your output and resolve persistent quality issues.
Standardized Machining Workflow: We utilize rigorous quality control protocols at every single stage of fabrication. By strictly controlling metallurgical purity and machining tolerances, we ensure that the first piece performs exactly like the ten-thousandth piece, eliminating batch-to-batch variation.
Rapid & Stable Delivery: Whether you require a small-batch prototype run for testing a new assembly line or continuous bulk shipments for global factory distribution, our flexible order handling and robust inventory management guarantee on-time arrival.
Continuous Process Improvement: We actively analyze after-use feedback from the shop floor, refining our designs and metallurgy to help you overcome emerging manufacturing challenges and adapt seamlessly to new, harder-to-weld sheet materials.
