Resistance Welding Electrode Maintenance Guide

Introduction

Maintaining a Resistance Welding Electrode is crucial for consistent welds and smooth machine operation. Neglected electrodes can cause sticking, deformation, and uneven welds, raising scrap rates and costs. This guide covers cleaning, dressing, cooling, storage, alignment, and optimization to extend electrode life and improve welding efficiency for manufacturers.

Understanding Resistance Welding Electrode Wear

Causes of Electrode Wear

Electrodes face repeated thermal and mechanical stresses during each weld cycle. Excessive current, improper welding pressure, and misalignment accelerate wear, particularly when welding coated or high-resistance metals. Over time, repeated heating and cooling cycles cause tip mushrooming, flattening, and reduced electrical conductivity. Even minor misalignment can result in uneven current distribution, leading to accelerated wear, inconsistent weld nuggets, and additional production downtime.

Signs of Worn Electrodes

Worn electrodes display visible deformities such as flattened tips, discoloration, and surface mushrooming. Weld spatter often increases, resulting in inconsistent penetration and weak nugget formation. Reduced thermal and electrical conductivity affects both weld quality and machine efficiency. Regular inspection is critical to detect these signs before weld quality deteriorates, and minor tip adjustments can prevent larger production issues.

Impact on Weld Quality

Worn electrodes directly compromise weld strength and uniformity. Weak welds, reduced penetration, and uneven fusion increase scrap rates and rework. Overheated or misaligned tips can damage machines over time, including transformers and weld control systems. Maintaining electrode shape and surface integrity preserves both weld quality and equipment longevity, minimizing labor costs and downtime.

Electrode Cleaning and Dressing

Cleaning Procedures

Electrode cleanliness is critical to maintaining consistent current flow and preventing weld defects. Use soft cloths, brushes, and neutral, non-corrosive cleaners to remove oxide layers, spatter, and other contaminants. Clean electrodes and fixtures both before and after each production shift. For delicate components like connectors or circuit boards, use compressed air or specialized electronic cleaners. Regular cleaning ensures proper conduction and avoids localized overheating.

Electrode Dressing Techniques

Proper tip dressing restores the electrode to its original geometry. Hand files, air-driven rotary tools, or automated dressers can be used depending on production volume. Avoid over-dressing, which reduces electrode life, or under-dressing, which leads to uneven weld contact and poor consistency. Well-dressed electrodes ensure optimal contact with the workpiece, reduce current density issues, and maintain consistent nugget formation.

Frequency of Dressing

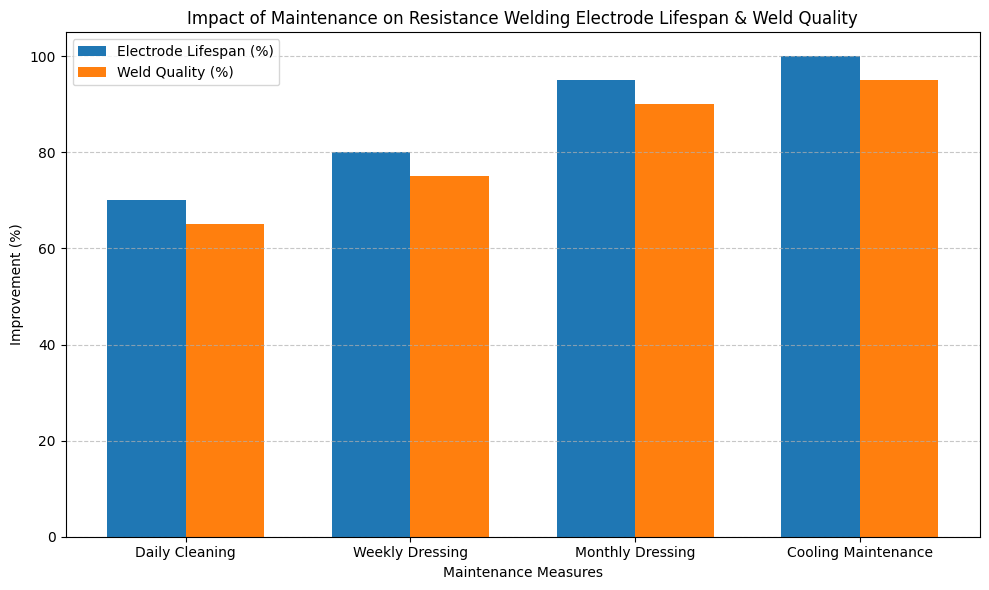

Electrodes require a tiered maintenance schedule for longevity. Daily checks involve minor cleaning and visual inspections. Weekly maintenance includes minor reshaping and alignment verification. High-volume operations should implement monthly full tip dressing to restore electrode geometry. Adhering to these intervals prolongs electrode life, ensures uniform welds, and reduces unplanned downtime.

Cooling and Water System Maintenance

Importance of Cooling

Electrode overheating accelerates tip wear, reduces conductivity, and leads to weld inconsistencies. Proper cooling prevents thermal degradation, maintains tip hardness, and preserves electrical and thermal properties. Consistent cooling also prevents warping, mushrooming, and surface deformation, which could compromise weld integrity over time.

Water Flow and Temperature

Recommended water flow rates range from 4–6 L/min, depending on the material thickness and coating. Inlet water temperature should remain ≤20°C, and outlet ≤30°C. Ensure water lines are free of debris, blockages, or kinks. Quill-style water tubes must direct flow to the tip face effectively. Maintaining proper flow prevents localized overheating and extends electrode life significantly.

Cooling Tube and Holder Maintenance

Inspect cooling tubes and holders regularly. Replace or repair any leaks and ensure water reaches the electrode tip. Misaligned or blocked tubes reduce cooling efficiency, causing tip softening and mushrooming. Properly functioning water channels maintain uniform electrode temperature and extend life for high-volume welding operations.

Electrode Storage and Handling

Proper Storage Environment

Electrodes should be stored in dry, dust-free environments. Moisture, oils, and corrosive atmospheres degrade electrode surfaces, reducing conductivity and causing weld defects. Controlled storage prevents oxidation and prolongs tip life.

Protective Covers and Organization

Use protective covers for electrodes to prevent contamination. Clearly label each type and size to avoid mix-ups. Organized storage ensures rapid access and maintains consistent electrode condition, which is essential for high-volume production.

Conditioning New Electrodes

For coated or galvanized metals, perform test welds on scrap materials before production. Conditioning stabilizes coatings like zinc, ensuring proper tip contact and preventing sticking or premature wear. This practice reduces early-life welding inconsistencies and improves long-term tip performance.

Monitoring and Maintaining Electrode Alignment

Importance of Alignment

Misaligned electrodes cause uneven welds, deflection, and inconsistent nugget size. Proper alignment ensures uniform contact and consistent current distribution. Correct alignment reduces spatter, improves weld quality, and extends electrode life, preventing costly rework and machine wear.

Checking and Adjusting Alignment

Use gauges or specialized alignment tools to maintain parallelism and perpendicular contact with the workpiece. Perform adjustments during regular inspections or after tip dressing. Alignment checks are critical in robotic or automated cells where electrodes cannot self-correct.

Fixture Design Considerations

Rigid fixtures and short electrodes reduce mechanical deflection and improve cooling. Proper clearance around tooling allows water and air to flow freely, enhancing electrode life. Well-designed fixtures contribute to consistent welding and uniform tip wear.

Optimizing Weld Parameters for Electrode Longevity

Proper Current and Pressure

Set current and force according to manufacturer recommendations. Excessive parameters accelerate tip wear, cause mushrooming, and generate spatter. Proper adjustment maintains nugget consistency and prolongs electrode life.

Weld Time Management

Shorter weld times minimize tip heating and reduce oxidation or surface softening. Excessive duration leads to deformation and inconsistent welds. Using precise weld schedules improves both quality and electrode longevity.

Using Programmable Controls

Modern programmable welding systems allow current stepping and adaptive schedules to compensate for electrode wear. Automated adjustments maintain consistent weld quality, especially during long production runs, reducing downtime and preventing premature electrode replacement.

Advanced Electrode Maintenance Practices

Electrode Material Selection

Choosing the right electrode material is critical. Copper, Copper-Chromium, Cu-Co-Be, Tungsten, and Molybdenum each provide different hardness, conductivity, and wear resistance. Matching electrode material to the base metal reduces sticking and heat stress while prolonging tip life.

Automated Dressing Systems

High-speed dressers maintain uniform tip geometry in robotic or high-volume applications. Automated systems reduce downtime, improve consistency, and allow operators to focus on other production tasks. Properly maintained automated systems ensure optimal welding quality in continuous operations.

Troubleshooting Electrode Issues

Sticking, burn marks, and deformation are common problems. Adjust cooling, current, pressure, or perform dressing as corrective measures. Proactive monitoring prevents weld failures, minimizes scrap, and enhances overall production efficiency.

Combining correct materials, automated dressing, and routine monitoring maximizes electrode performance for industrial operations.

Conclusion

Proper maintenance of your Resistance Welding Electrode ensures consistent welds, optimal tip life, and reliable machine performance. Following structured cleaning, dressing, cooling, storage, and alignment protocols minimizes downtime, reduces scrap, and prevents costly rework. Using high-quality electrodes with disciplined maintenance supports high-volume, precision welding operations. Guangzhou Yizhunxing International Trade Co., Ltd. offers durable, reliable electrodes and maintenance solutions that enhance productivity, improve weld consistency, and sustain long-term industrial welding efficiency.

FAQ

Q: What is a Resistance Welding Electrode?

A: A Resistance Welding Electrode conducts current and applies pressure to form welds efficiently.

Q: How do I maintain a Resistance Welding Electrode?

A: Clean, dress, and align the electrode regularly, and ensure proper cooling and storage.

Q: Why do electrodes wear out quickly?

A: High current, excessive pressure, misalignment, or poor cooling accelerate wear on electrodes.

Q: How often should I dress electrode tips?

A: Perform daily minor checks, weekly reshaping, and monthly full dressing for optimal performance.

Q: Can electrode alignment affect weld quality?

A: Yes, misaligned electrodes cause uneven welds, deflection, and reduced electrode life.
