Parameter | Details |

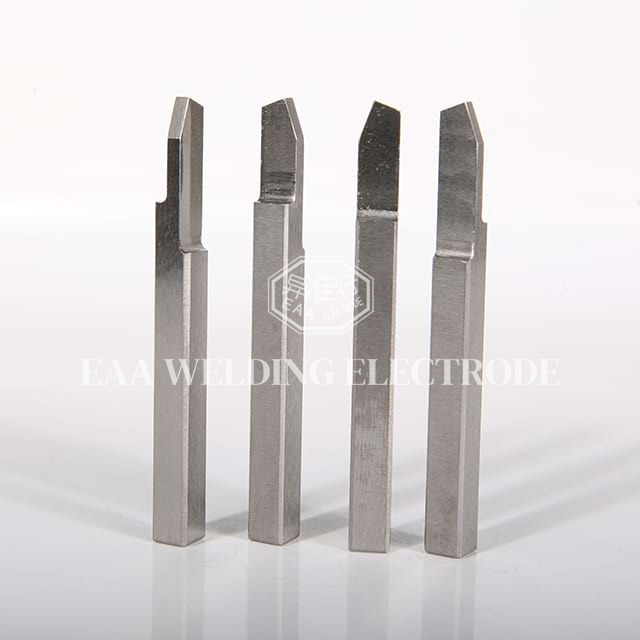

Product Name | Head multi angle pure tungsten electrode |
Material | Pure tungsten |
Dimensions | 43×8×6mm |
Manufacturing Process | Mechanical processing |
Dimensional Tolerance | Compliant with custom drawings and national standards |
Usage Method | Clamp welding |
Applicable Temperature Range | Up to 3000℃ |
Core Advantage | Multi-angle head for enhanced welding adaptability |
Forged from pure tungsten with an exceptional purity level of ≥99.95%, this electrode delivers remarkable thermal resistance and arc consistency. The dense, weighty feel of the metal reflects its industrial-grade composition. By minimizing spatter during intensive welding cycles, it significantly lowers electrode consumption. This translates to an extended operational lifespan and a highly favorable return on investment for large-scale manufacturing facilities seeking to control overhead costs and maximize production uptime.
The specialized multi-angle head geometry adapts effortlessly to complex joint configurations, ensuring uniform contact between the electrode tip and the workpiece. During continuous heavy-current operations, the tip maintains its structural integrity without deforming. This advanced design boosts overall welding efficiency by approximately 20% compared to standard flat-head alternatives, drastically reducing rework and ensuring reliable, clean weld seams even in demanding environments.
Each electrode undergoes rigorous mechanical processing to achieve a flawlessly smooth surface finish, free of micro-abrasions. This pristine exterior prevents arc wandering and guarantees a highly stable current transfer. Manufactured under strict adherence to international welding consumable guidelines (including AWS and ISO standards), every batch delivers 100% consistency, providing procurement managers with dependable performance across multiple production runs.
Meeting both stringent national standards and precise custom drawing specifications, the dimensional tolerances are controlled down to the micro-level. This exactness eliminates frustrating fitment issues with existing welding fixtures. The result is absolute interchangeability across automated production lines, allowing operators to swap out electrodes swiftly without the need to recalibrate clamping pressure or mechanical alignment.
Engineered specifically for clamp welding environments, the material properties and physical structure integrate flawlessly with standard clamping equipment. It offers plug-and-play compatibility with mainstream clamp welding machines and standard TIG torches. Even under punishing, continuous shifts, the electrode maintains peak performance, making it an indispensable asset for high-volume manufacturing environments that demand continuous operation.
Perfectly suited for assembling auto body panels, critical engine components, and heavy-duty chassis structures where clamp welding is the standard. The multi-angle head navigates complex geometric joints with ease, ensuring deep, uniform penetration. It is particularly effective when working with precision aluminum components, ensuring strong, structurally sound welds that withstand intense mechanical stress and vibration.
Highly recommended for joining sensitive electronic components, including micro-connectors, industrial sensors, and intricate circuit board housings. The ultra-pure tungsten composition guarantees a clean, uncontaminated weld pool, protecting delicate electronic parts from impurities. Operators will appreciate the crisp, quiet arc initiation that prevents thermal damage to surrounding micro-components.
Frequently utilized in the fabrication of heavy-duty metal tools, such as industrial pliers, wrenches, and specialized hardware fittings. The exceptional durability of the tungsten material and its unwavering arc stability ensure consistent, repeatable weld strength. This reliability is crucial for load-bearing hardware products that demand maximum structural integrity under extreme pressure.
Trusted for welding small to medium-sized aerospace components that demand zero margin for error. The electrode is specifically optimized for joining heat-resistant metals like stainless steel and titanium alloys. Its strict tolerance control and pure composition meet the rigorous, uncompromising safety and quality standards required in modern aerospace engineering.
Begin by thoroughly cleaning the workpiece surface to eradicate residual oils, oxidation, and particulate debris, ensuring optimal electrical conductivity. Visually inspect the multi-angle head of the tungsten electrode; the metallic surface should appear smooth and uniform. Replace the unit immediately if the angular geometry shows signs of thermal deformation or physical wear.
Carefully insert the electrode into the clamp welding apparatus, verifying that it is rigidly secured and perfectly aligned with the target joint. Calibrate the clamping pressure to correspond with the specific thickness of the workpiece (the optimal recommended range is between 0.3 and 0.8MPa). A secure fit prevents micro-vibrations during the welding cycle.
Configure the welding current (typically between 100-300A) and the duration (0.5-2 seconds) based on the specific metallurgical properties and thickness of the base metal. Thanks to the pure tungsten's exceptional thermal resistance, the electrode operates flawlessly even under sustained moderate-to-high current loads, delivering a steady, focused energy output.
Engage the welding sequence. The unique multi-angle head facilitates an incredibly even distribution of heat across the entire joint. Listen for the consistent, humming sound of a stable arc. Continuously monitor the operation; if any unexpected spatter or arc wandering is detected, pause and adjust the current or pressure parameters accordingly.
Examine the completed weld seam for potential defects such as micro-cracking, internal porosity, or incomplete fusion. The reliable performance of this pure tungsten electrode drastically reduces defect rates, ensuring that over 95% of completed welds pass stringent quality assurance checks on the first pass, entirely eliminating the need for costly rework.
We provide comprehensive, flexible customization and supply chain solutions engineered to support your unique manufacturing requirements and keep your production lines running without interruption:
Dimensional Adjustments: Precisely modify the length, width, and thickness of the electrode to match your proprietary engineering drawings.
Head Geometry Modifications: Alter the multi-angle head shape and specific angles to perfectly accommodate unconventional or highly specialized welding joints.
Tolerance Tailoring: Customize dimensional tolerance ranges to comply with hyper-specific industry regulations or internal quality control mandates.
Industrial Packaging & Bulk Supply: Delivered in robust, industrial-grade standard packaging (available in 10 pieces/box or 50 pieces/box). We fully support large-scale centralized procurement to ensure your facility never faces a shortage.
Inventory & Rapid Delivery: We maintain a substantial inventory of standard components, allowing for flexible Minimum Order Quantities (MOQ). For custom batch orders, we guarantee rapid turnaround times of just 7-15 working days.
Compliance Guarantee: All tailored products undergo rigorous inspection to ensure they remain fully compliant with national and international welding electrode standards.
The specialized multi-angle head is engineered to adapt to a wider variety of complex joint shapes. By improving the uniformity of physical contact between the tip and the metal, it drastically reduces arc deviation. This results in cleaner, deeper weld penetration, fewer defects, and a noticeable boost in overall operational efficiency.
Pure tungsten delivers unparalleled thermal resistance and maintains structural stability even under extreme heat. Its dense composition ensures a highly focused, stable arc while minimizing material consumption. This makes it the most cost-effective and reliable choice for long-term, high-precision manufacturing operations where consistency is paramount.
Yes, the electrode features a standardized physical footprint designed to seamlessly integrate with the vast majority of mainstream clamp welding machines and standard TIG torches on the market. For highly specialized or proprietary machinery, we offer rapid custom sizing to ensure a perfect, plug-and-play fit.
When utilized under standard industrial operating conditions—such as continuous 8-hour daily shifts—a single electrode reliably performs through 30 to 50 complete welding cycles. The exact lifespan will vary slightly depending on the thickness of the base materials and the intensity of the current applied during the process.
Absolutely. The ultra-pure tungsten matrix is capable of withstanding extreme operational temperatures reaching up to 3000℃. This extraordinary heat tolerance makes it the ideal consumable for welding challenging, high-temperature-resistant base metals, including heavy-duty stainless steel and aerospace-grade titanium alloys, ensuring a pure weld pool without contamination.
