Superior Narrow Space Accessibility The unique angled offset structure enables the electrode to reach deep into confined cavities, folded edges, inner frames and other blind areas where straight standard electrodes cannot touch. It solves the long-standing pain point of incomplete spot welding and inaccessible welding positions in complex automotive body frames and battery module brackets, greatly improving the coverage rate of welding points for complex structural workpieces.
Accurate and Controllable Thermal Distribution The composite embedded structure perfectly separates functional layers: the chromium-zirconium copper matrix undertakes rapid electrical conduction and heat dissipation, while the high-melting-point pure tungsten insert bears instantaneous high temperature and mechanical friction at the contact point. This layered design avoids excessive heat diffusion that burns through thin plates or damages internal components, realizes precise heat input control, effectively reduces electrode softening loss caused by thermal stress, and keeps each welding spot’s heat input consistent in mass production.
Remarkably Extended Service Life Pure tungsten features ultra-high hardness, outstanding high-temperature oxidation resistance and anti-adhesion performance. Compared with solid chromium-zirconium copper electrodes, the tungsten inserted tip can withstand tens of thousands of high-current continuous welding cycles without serious indentation, pitting or material sticking. The replacement frequency is reduced by more than 60%, lowering overall consumable procurement and machine downtime costs for manufacturers.
Stable and Uniform Welding Quality Rounded chamfered corners eliminate stress concentration and scratch risks on coated aluminum plates, galvanized steel and battery copper tabs. The angled fitting surface fits tightly against curved and irregular workpiece surfaces during clamping, achieving even pressure distribution on the welding interface. It effectively avoids virtual welding, cold joints and inconsistent nugget sizes, guaranteeing high repeatability of welding strength for batch production lines.
Strong Compatibility for Dissimilar Material Welding Different metals such as aluminum alloy & high-strength steel, copper & nickel sheet, titanium alloy & stainless steel have huge differences in thermal conductivity and melting points. The asymmetric angled profile of this electrode can balance heat output according to material properties, make up for material thermal gap, and form firm and crack-free welded joints, which is irreplaceable for new energy vehicle lightweight dissimilar material connection.
Item | Specification |
Material | Chromium-zirconium copper + pure tungsten (≥ 99.95%) |

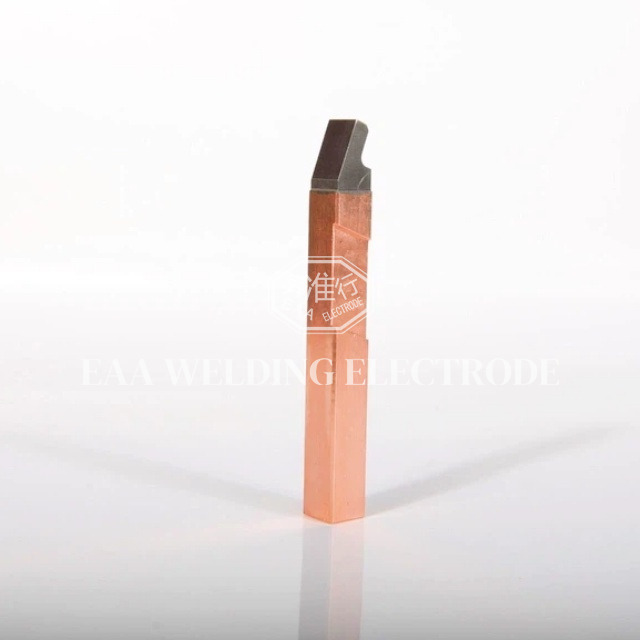

Shape | Angled tungsten-inserted electrode |
Size | 10mm*10mm*68mm |
Tolerance | According to customer drawings or national standards |
Manufacturing Process | Precision machining and fine polishing |
Surface Treatment | Polished surface with low roughness |
Corner Design | Rounded corners and chamfers |
Application Method | Precision resistance welding |
Heat Resistance | Excellent performance under high-current welding |
Customization | Available on demand (shape, size, tolerance, etc.) |
Note: All parameters can be customized according to customer requirements, including geometry, tolerance, and surface treatment.
Advantage | Description |
Space Adaptability | It can perform welding from angles that are difficult for conventional electrodes to reach, making it particularly suitable for welding in narrow spaces and complex structures. |
Precise Heat Control | The inlaid design perfectly combines the electrode tip material (high melting point) with the base (high thermal conductivity), precisely controlling heat distribution and reducing electrode wear. |
Significantly Improved Service Life | The inlaid tungsten/molybdenum tip has high hardness and high-temperature resistance, which greatly extends the electrode's service life and reduces replacement frequency and costs. |
Stable Welding Quality | The angled design allows the electrode to better fit the surface of complex workpieces, ensuring uniform pressure distribution and improving solder joint consistency. |
Dissimilar Material Welding | It is particularly suitable for welding workpieces of different thicknesses or materials, and compensates for material differences through an asymmetric design. |
Body structure welding, especially spot welding in space-constrained areas.
Power battery module connection; the electrode with embedded tungsten/molybdenum tip can improve welding reliability and extend service life.
Dissimilar material connection between aluminum alloy and high-strength steel; the angled design is used to optimize heat distribution.
Welding of microelectronic components, such as sensors and connectors.
Precision spot welding of printed circuit boards (PCBs) and components, especially in narrow areas.
Welding of lithium battery tabs, which requires high precision and stability.
Welding of lightweight structures, such as honeycomb sandwich panels.
Connection of precision components in medical devices, which requires small and high-strength solder joints.
Welding of special materials (such as titanium alloys), which requires the electrode to have high-temperature resistance and corrosion resistance.
Straight electrodes cannot reach deep narrow gaps and folded inner positions, while the angled offset design solves position limitation. Meanwhile, tungsten insert greatly improves wear resistance and high temperature resistance, reducing long-term consumable costs and production downtime.
Yes. Its composite thermal conductivity matching structure and angled pressure balance design can reasonably distribute welding heat on two different metals, form qualified nuggets without cracks or brittle layers.
Under standard high-current battery and auto spot welding working conditions, the service life is 2.5–4 times longer than monolithic chromium-zirconium copper electrodes, specifically related to welding current, material thickness and daily maintenance frequency.
100% customizable. You only need to provide fixture drawings, workpiece spacing and required deflection angle, we can process non-standard special-size electrodes with full dimensional inspection before delivery.
Regularly polish the tungsten contact surface to remove oxide layers and metal adhesion; keep cooling system normal for high-current continuous welding; avoid excessive welding pressure leading to electrode deformation.
Definitely. Sharp corners will scratch galvanized layers, aluminum oxide films and battery copper tabs during pressing. Rounded chamfers protect workpieces from surface damage while ensuring stable pressure conduction.
