Tungsten Copper Electrode Makes Welding Easier Than Ever

You can make your welding projects easier and more reliable with the Tungsten Copper Electrode. This tool gives you strong durability and excellent conductivity. Many welding professionals trust it for tough jobs. They say it resists corrosion in harsh environments, stands up to high temperatures, and keeps its shape even in the cold. You will also find it easy to use with MIG or TIG welding. These features help you get better results every time.

• Strong resistance to corrosion, even in marine settings

• High wear resistance and easy machinability

• Withstands scaling and oxidation at high heat

• Stays stable at very low temperatures

• Works well with MIG and TIG welding

Key Takeaways

• Tungsten Copper Electrodes offer strong durability and excellent conductivity, making welding projects easier and more reliable.

• Choose the right tungsten-copper ratio for your project: WCu90 for better conductivity, WCu80 for general use, and WCu70 for high durability.

• These electrodes resist wear and maintain their shape, reducing maintenance time and improving weld quality.

• Use Tungsten Copper Electrodes for various welding applications, including TIG, MIG, and resistance welding, to enhance versatility.

• Follow safety guidelines and proper handling techniques to protect yourself and ensure the best results while welding.

What Is a Tungsten Copper Electrode?

Composition and Structure

You use a Tungsten Copper Electrode when you need both strength and conductivity in your welding work. This electrode blends tungsten and copper to create a material that stands up to heat and pressure. Tungsten gives the electrode a high melting point and strong shape. Copper adds excellent electrical and thermal conductivity. The microstructure of this electrode is very important. Manufacturers use high-purity tungsten and fill it with oxygen-free copper. This process creates a uniform structure with low porosity. You get a tool that resists cracking and keeps its shape, even during tough jobs.

EAA Welding Electrode offers several types of Tungsten Copper Electrode. You can choose from WCu90, WCu80, and WCu70. Each type has a different ratio of tungsten to copper. This lets you pick the best one for your project. Here is a table that shows common ratios and their uses:

Key Properties for Welding

You want an electrode that performs well under stress. The Tungsten Copper Electrode gives you several key properties that make welding easier and more reliable. The table below lists these important features:

You can count on this electrode to keep working, even when the job gets hot or the weld is difficult. The balance of copper and tungsten helps you get strong, clean welds every time.

Benefits of Tungsten Copper Electrode

Durability and Shape Stability

You want your welding tools to last through many jobs. The Tungsten Copper Electrode gives you that advantage. It stands up to heat, wear, and arc erosion better than most other electrodes. When you use it, you notice less deformation and fewer shape changes, even after many welding cycles. This means you spend less time on maintenance and more time working.

Here is a table that shows how the Tungsten Copper Electrode compares to pure copper electrodes:

You can see that the Tungsten Copper Electrode keeps its shape and strength, even under tough conditions. This helps you get reliable results every time.

Electrical and Thermal Conductivity

You need an electrode that can handle high currents and heat. The Tungsten Copper Electrode combines the best of both metals. Tungsten gives it a high melting point, so it does not break down under heat. Copper adds excellent electrical and thermal conductivity. This means you get smooth energy flow and less risk of overheating.

You can choose different ratios of tungsten and copper to match your job. If you work with copper sheets, a higher copper content gives you better thermal conductivity. If you need more hardness and wear resistance, a higher tungsten content works best. This flexibility lets you pick the right tool for each task.

Consistent Weld Quality

You want every weld to look clean and hold strong. The Tungsten Copper Electrode helps you achieve that. It resists wear from the welding arc, so you get fewer defects like pitting or rough surfaces. The high melting point of tungsten keeps the electrode stable, even during long jobs. Copper helps prevent problems from DC arcing, which can damage the weld.

With this electrode, you see fewer mistakes and less rework. Your welds stay smooth and even, which saves you time and effort.

Versatility in Applications

You can use the Tungsten Copper Electrode in many different welding jobs. It works well for high-load resistance welding, projection welding, and even for welding hard-to-weld alloys. You can also use it in:

• Mechanized TIG welding for precision bellows and high-speed tube mills

• Plasma arc welding with shaped tungsten electrodes

• Manual welding with TIG torches

• Electrical contacts in high voltage and ultra-high voltage systems

• EDM (Electrical Discharge Machining)

• Electric locomotive guide blocks and ultra-high voltage switches

This versatility means you only need one type of electrode for many tasks. You can pick from WCu90, WCu80, or WCu70, depending on your needs. WCu90 works well for copper sheets, WCu80 is great for general use, and WCu70 gives you higher conductivity for special jobs.

Tip: Choose the right tungsten-copper ratio for your project. More copper means better conductivity. More tungsten means better durability.

You get a tool that adapts to your work, making every welding job easier and more efficient.

Tungsten Copper Electrode vs. Others

Performance Comparison

When you compare welding electrodes, you want to see how each one performs under real work conditions. The Tungsten Copper Electrode stands out because it handles heat and pressure better than most other types. You get less wear and fewer shape changes, even after many uses. This means you can trust your welds to stay strong and clean.

Here is a table to help you see the differences:

You can see that this electrode gives you a balance of strength and conductivity. You do not have to choose between durability and performance.

Ease of Use and Maintenance

You want tools that make your job easier. The Tungsten Copper Electrode helps you work faster and with less effort. You do not need to stop often to reshape or replace the electrode. This saves you time and keeps your workflow smooth.

• You can machine the electrode to fit special shapes.

• You spend less time cleaning because it resists arc erosion.

• You get fewer defects, so you do not need to redo your work.

Tip: Always check your electrode before each job. A quick inspection helps you catch any issues early and keeps your welds safe.

When you use this electrode, you notice less downtime and more time spent welding. You get a tool that supports your skills and helps you finish projects with confidence.

Practical Tips for Welders

Maximizing Electrode Life

You want your welding tools to last as long as possible. To get the most out of your Tungsten Copper Electrode, pay attention to these common causes of wear:

1. High temperatures can soften copper and cause it to wear out faster.

2. Using too much current can lead to overheating.

3. The quality and ratio of tungsten and copper affect how long the electrode lasts.

4. Rough surfaces can create hot spots and speed up wear.

5. Mechanical stress, like vibration or impact, can cause fatigue.

6. Corrosive environments can damage the electrode.

7. The shape and size of the electrode matter for wear rates.

8. Poor cooling can lead to overheating.

9. Harsh work conditions can shorten service life.

Tip: Keep your electrode cool and clean. Check for signs of wear before each job.

Achieving Consistent Results

You want every weld to look good and hold strong. Follow these steps for better results:

• Make sure your joint design is uniform and all pieces fit tightly.

• Use a 2% thoriated tungsten electrode for a steady arc in TIG welding.

• Set your machine to the right amperage, gas flow, and voltage for your material.

• Keep a steady arc and use enough amperage for full penetration.

• Preheat your workpiece to reduce cracking and improve fusion.

• Pick the right filler material for your base metal.

• Clean your workpiece and filler metal to avoid contamination.

• Maintain your welding equipment by checking for wear and cleaning often.

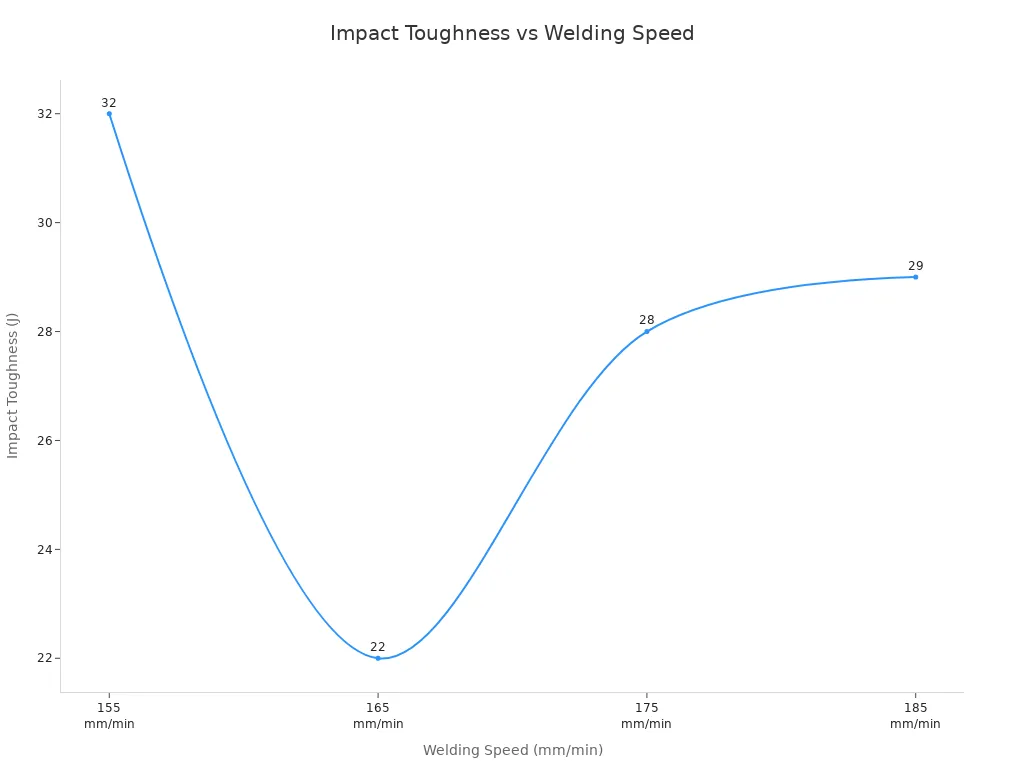

The right welding parameters make a big difference. See how current and speed affect your welds:

Safety and Handling

You must protect yourself when working with welding electrodes. Always wear personal protective equipment like heat suits and visors with gold-plated glass. Use HEPA-filtered respirators to avoid breathing in tungsten dust. Never work alone. Make sure you know about fire and explosion risks, especially if you use tungsten powder. Let equipment cool before you touch it, and use proper ventilation to keep the air clean.

Note: Breathing in tungsten dust can cause lung problems. Good ventilation and proper masks keep you safe.

By following these tips, you can use your Tungsten Copper Electrode safely and get the best results every time.

You can make your welding process smoother and more efficient with the Tungsten Copper Electrode. This tool gives you up to five times the lifespan and twice the finish quality compared to standard materials, as shown below:

You also benefit from trusted certifications like ISO 9001 and CE. Upgrading may cost more at first, but you save money over time with less downtime and fewer replacements.

FAQ

What makes Tungsten Copper Electrodes better for welding?

You get high durability, strong shape stability, and excellent conductivity. These features help you weld faster and with fewer mistakes. You also spend less time on maintenance.

Can I use Tungsten Copper Electrodes for all types of welding?

You can use them for resistance welding, projection welding, TIG, and plasma arc welding. They work well with many metals, including hard-to-weld alloys.

How do I choose the right tungsten-copper ratio?

Tip: Pick WCu90 for copper sheets, WCu80 for general jobs, and WCu70 for higher conductivity needs. The right ratio depends on your project’s heat and strength requirements.

How should I store and handle these electrodes?

Store your electrodes in a dry, cool place. Wear gloves when handling them. Always check for damage before use. Good storage keeps your tools in top shape.
