Spot welding is an essential technique in modern manufacturing. But how do you ensure the best results? The secret lies in the Spot Welding Electrode material. Choosing the right material can significantly affect weld quality, durability, and production efficiency.
In this guide, we will explore various Spot Welding Electrode materials, their advantages, and how to select the best one for your application. Whether you're working with copper alloys, tungsten, or specialized alloys, this guide will provide the insights needed to optimize your welding operations.
A Spot Welding Electrode is a critical component in the spot welding process, used to apply pressure and conduct the necessary current to join metal parts. It typically consists of a metal tip made from high-conductivity materials that allow heat generation at the contact point between the two metal pieces. The heat generated by electrical resistance causes the metals to melt and fuse together, creating a weld.
Choosing the right electrode material is essential, as it determines not only the weld quality but also the durability and performance of the electrode. The material selection affects factors such as conductivity, wear resistance, and heat tolerance, which all play a significant role in achieving consistent and reliable welds.
The quality of a spot weld depends largely on the material of the Spot Welding Electrode. High-conductivity materials ensure efficient heat generation, which leads to stronger and more durable welds. On the other hand, materials that are too soft may wear out faster and result in weaker welds. The material's resistance to heat is also crucial, as improper heat dissipation can cause localized overheating, leading to electrode failure or poor-quality welds.
Some of the most common problems caused by using the wrong electrode material include:
● Excessive wear: Low-quality materials wear out quickly, resulting in frequent electrode replacements and increased downtime.
● Weak welds: Electrode materials with low conductivity can lead to insufficient heat generation, resulting in weak joints that fail under stress.
● Poor weld consistency: Inconsistent electrode materials can lead to variations in heat generation, causing inconsistent weld spots.
Copper alloys are by far the most commonly used materials for Spot Welding Electrodes, primarily due to their excellent electrical and thermal conductivity. These alloys offer the perfect balance of conductivity and durability, making them ideal for general-purpose welding applications such as automotive manufacturing and household appliance production. The most common copper alloys used for spot welding include Copper-Chromium (CuCr) and Copper-Zirconium (CuZr).
Benefits:
● High electrical conductivity ensures efficient heat generation.
● Good thermal resistance helps prevent overheating.
● Cost-effective for medium-duty applications.
Applications:
● Automotive manufacturing: Welding of sheet metal components such as body panels and frames.
● Household appliances: Used in welding parts like refrigerator components and washing machine casings.
● General sheet metal applications: Perfect for welding steel and other metals in various manufacturing processes.
Electrode Material | Conductivity | Hardness | Common Applications |
Copper-Chromium | 80-90% IACS | Medium | Automotive, Steel |
Copper-Zirconium | 74-85% IACS | High | Sheet Metal Welding |
Tungsten and molybdenum are referred to as refractory electrode materials, known for their high melting points and hardness. These materials are suitable for specialized applications where high temperature resistance is needed, such as projection welding or welding high-strength materials. While tungsten is used for welding high-temperature metals, molybdenum is often preferred for applications that require excellent wear resistance.
Benefits:
● High hardness and melting points ensure suitability for high-temperature applications.
● Excellent wear resistance under high-stress conditions.
● Ideal for welding high-strength and refractory materials.
Applications:
● Projection welding: Ideal for applications where concentrated heating is needed at specific points.
● Welding high-strength materials: Used for welding tougher metals like stainless steel or titanium in high-stress applications.
Electrode Material | Melting Point | Strength | Common Applications |
Tungsten | >3,422°C | High | Aerospace, Precious Metals |
Molybdenum | 2,623°C | High | Heavy-duty Manufacturing |
Specialized alloys like Copper-Tungsten (CuW) and Copper-Nickel-Silicon (CuNiSi) are designed to provide superior strength and wear resistance. These materials are commonly used in heavy-duty welding applications, particularly when working with high-strength or thick materials. Copper-Tungsten, for example, is ideal for welding stainless steel and other alloys that require high heat and current.
Benefits:
● Superior wear resistance for high-stress applications.
● Ideal for high-current welding processes.
● Long electrode life even in demanding environments.
Applications:
● Welding high-strength steels: Used in automotive and aerospace industries.
● Heavy-duty and high-current applications: Perfect for welding thick materials in high-stress manufacturing environments.
Electrode Material | Conductivity | Hardness | Applications |
Copper-Tungsten | 40-60% IACS | Very High | High-strength steels, High-current welding |
Copper-Nickel-Silicon | Moderate | High | Automotive components, Heavy-duty applications |
Choosing the right Spot Welding Electrode material is largely determined by the workpiece material. For example, conductive materials like aluminum require electrodes with higher conductivity, while resistive materials like steel require electrodes with better durability and heat resistance. Following the “rule of opposites,” conductive electrodes should be used for welding resistive materials and vice versa.
Tips for Selecting the Right Electrode Material:
● For high-conductivity metals (e.g., copper, aluminum), choose high-conductivity electrodes like pure copper.
● For resistive materials (e.g., steel, stainless steel), opt for harder electrodes like Copper-Chromium or Copper-Tungsten.
● For refractory materials (e.g., tungsten, molybdenum), use refractory electrode materials designed for high-temperature applications.
When selecting Spot Welding Electrodes, consider the following factors:
● Current requirements: Higher currents demand materials that can withstand increased heat generation.
● Welding speed: For high-speed production, use electrodes that offer longevity and efficiency.
● Electrode shape and size: The shape of the electrode affects the current distribution and the weld nugget formation. Larger tips are ideal for thicker materials, while smaller tips are best for precision work.
Pure Copper is often used in spot welding applications where high conductivity is critical. Copper-Chromium and Copper-Zirconium alloys are often chosen for their ability to combine good conductivity with increased wear resistance. These alloys are commonly used in automotive and appliance industries for general sheet metal welding.
Advantages:
● High electrical and thermal conductivity for fast and efficient welding.
● Ideal for low- to medium-current welding.
Applications:
● Automotive body assembly
● Household appliance production
In high-temperature welding applications, Tungsten and Molybdenum offer superior heat resistance. These materials excel in welding tough materials like titanium, stainless steel, and high-strength alloys. They are typically used in aerospace, military, and heavy-duty manufacturing environments.
Advantages:
● Extremely high melting points.
● Excellent wear resistance for heavy-duty applications.
Applications:
● Aerospace and military applications
● Welding high-strength steels
The lifespan of Spot Welding Electrodes is influenced by factors such as the material being welded, the welding parameters, and the electrode material itself. High-conductivity materials wear out faster than more durable alloys. Proper maintenance, such as regular cleaning and reshaping, can help extend electrode life.
Factors to Consider:
● Electrode material: Harder alloys generally last longer.
● Welding conditions: High-frequency welding leads to faster wear.
● Cooling systems: Proper cooling helps prevent overheating and extends electrode life.
To maintain the performance of your Spot Welding Electrodes:
● Regularly clean the electrode tips to remove any metal buildup.
● Re-shape the tips when necessary to maintain optimal contact and heat distribution.
● Use proper cooling systems to prevent overheating and excessive wear.
● Replace electrodes when significant wear is detected to maintain weld quality.
The continuous development of new Spot Welding Electrode materials is driving innovation in the welding industry. Research is focused on improving electrode durability, heat resistance, and conductivity. New alloys and composite materials are being introduced to meet the evolving demands of modern industries.
Key Advancements:
● Introduction of high-strength alloys for better durability.
● Nano-coatings for improved wear resistance.
● Development of materials for high-frequency applications.
Sustainability is becoming increasingly important in the manufacturing industry, including in the selection of Spot Welding Electrodes. Manufacturers are exploring eco-friendly materials that are recyclable and energy-efficient, aiming to reduce the environmental impact of welding operations.
Sustainable Practices:
● Use of recyclable electrode materials.
● Research into energy-efficient welding technologies.
Selecting the correct Spot Welding Electrode material is essential to achieving high-quality welds and improving overall production efficiency. Whether you’re using copper alloys, tungsten, or specialized materials like copper-tungsten, it’s important to understand the specific properties of each material. This knowledge helps ensure you choose the best option for your welding application.By continuously enhancing electrode materials and following best practices for maintenance, manufacturers can optimize their welding processes for better performance, extended electrode life, and sustainability.
Choosing the right material and understanding the nuances of electrode selection will lead to consistent, reliable, and efficient results in your spot welding operations. Guangzhou Yizhunxing International Trade Co., Ltd. offers a range of high-quality electrodes designed to meet the demands of diverse industries, ensuring long-lasting and efficient welding solutions.
A: A Spot Welding Electrode is a component used in the spot welding process to apply pressure and conduct electricity to create welds. Its material affects weld quality and electrode life.
A: The material of a Spot Welding Electrode determines heat generation, conductivity, and wear resistance, which directly affects the strength, consistency, and durability of welds.

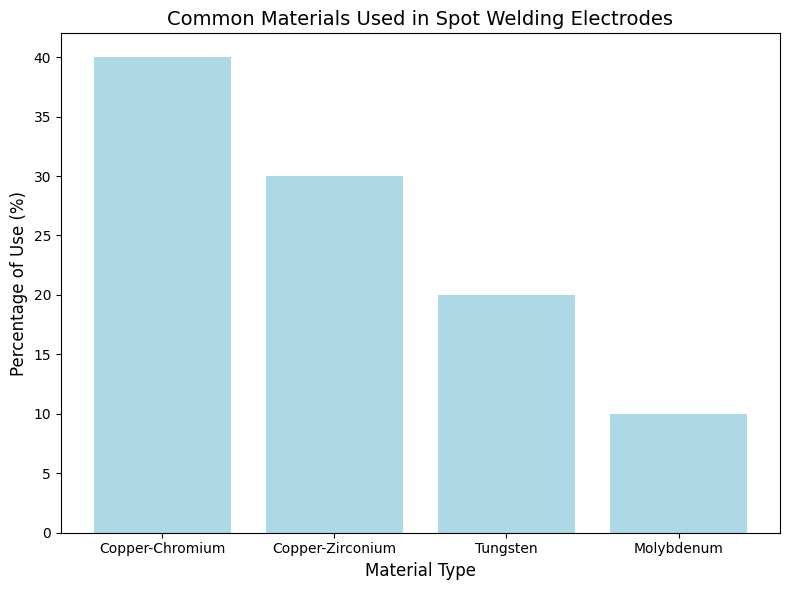

A: Common materials for Spot Welding Electrodes include copper alloys like Copper-Chromium and Copper-Zirconium, as well as refractory metals like tungsten and molybdenum.
A: Copper-Chromium offers a good balance of electrical conductivity and hardness, making it ideal for medium-duty applications like automotive and appliance welding.
A: Regular maintenance such as cleaning, reshaping the tips, and ensuring proper cooling can significantly extend the lifespan of Spot Welding Electrodes.
